Data Catalog

Overview

This page displays the Indexima memory usage per table, hyperindex, and nodes. You can drill down up to the memory consumption at the node level.

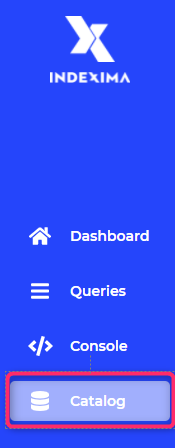

Access Data Catalog

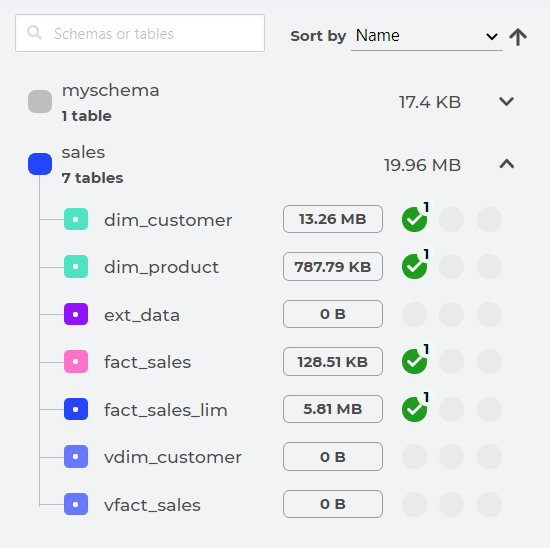

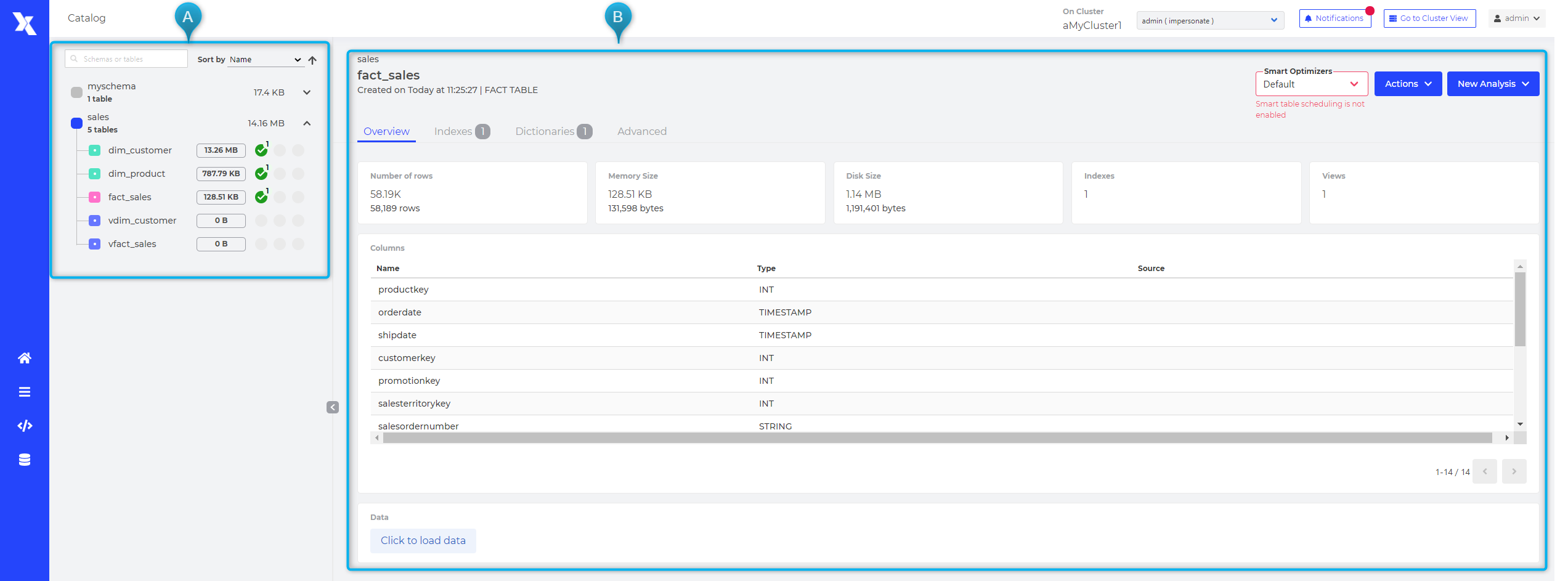

Left Panel: Schemas & Tables

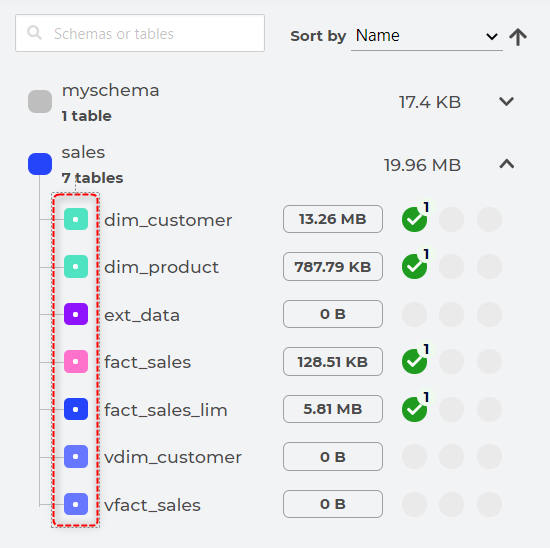

• Dataspace types

Color depends on the type of the table

Color	Table type
	Dimension table
	Fact table
	External Table
	Limited Table
	View

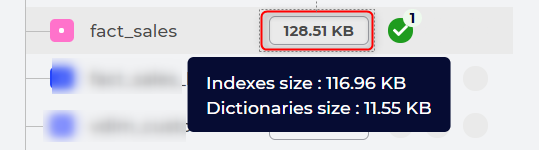

• Total Size

Memory is used by the hyperindex in RAM. If you hover your cursor over the size, you get details on dictionaries and indexes size.

• Index status

Color	Index status	Comments
	(Number of) loaded indexes
	(Number of) unloaded indexes	Unloaded indexes free up memory. They would need to be loaded in order to be used by a query.
	(Number of) on error indexes	Indexes on error can't be used. They must be deleted.

Right Panel: Table Detail

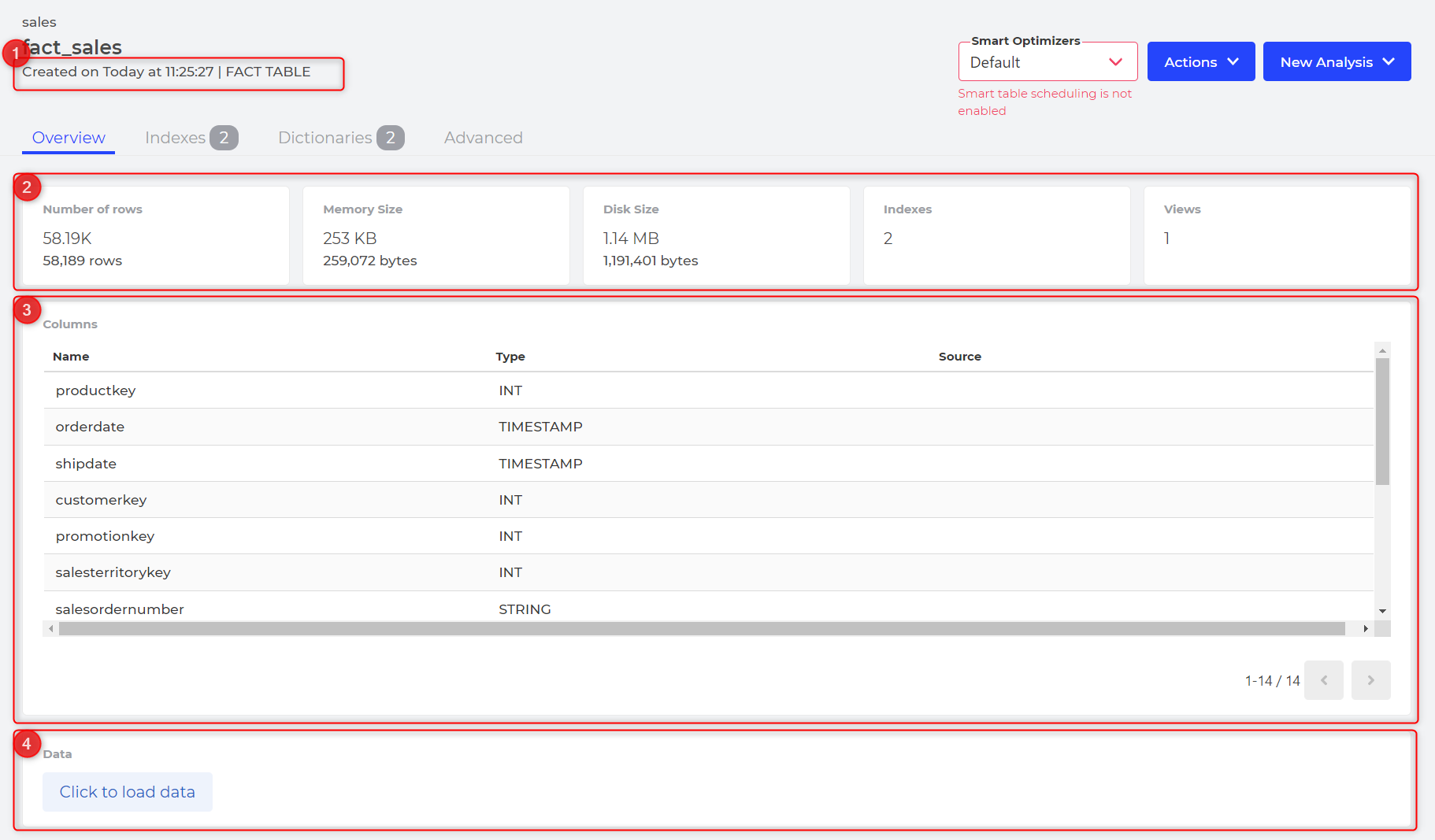

Overview

The overview displays:

• Block 1:
  • Table Table
  • Creation Date
• Block 2:
  • row number
  • Memory size
  • Disk size
  • Number of  existing indexes within the table
  • Number of views that used the table
• Block 3:
  • list of all columns and their datatype
• Block 4:
  • a button to load & view the first 100 lines of the tables

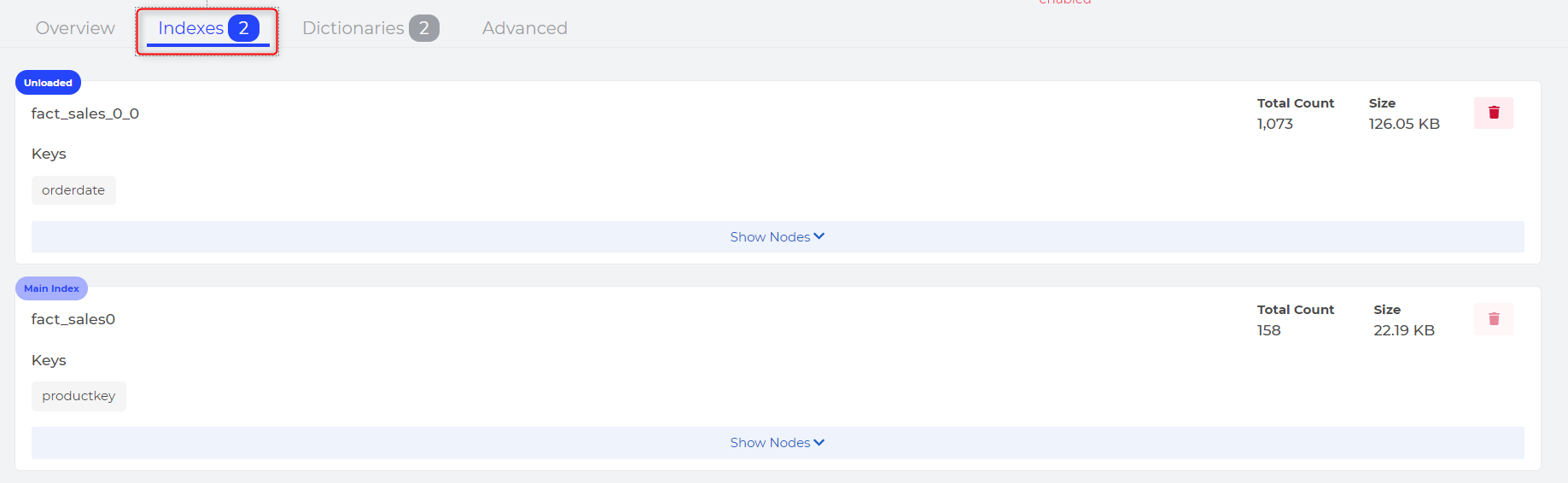

Indexes

• Total Count: The total number of lines within the index
• Size: The memory size of the index

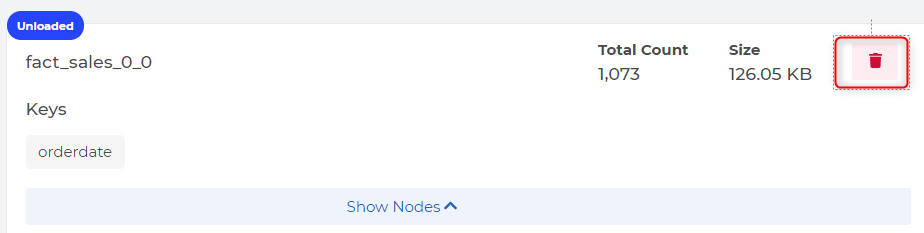

When possible, the user can delete one index by clicking on the bin icon.

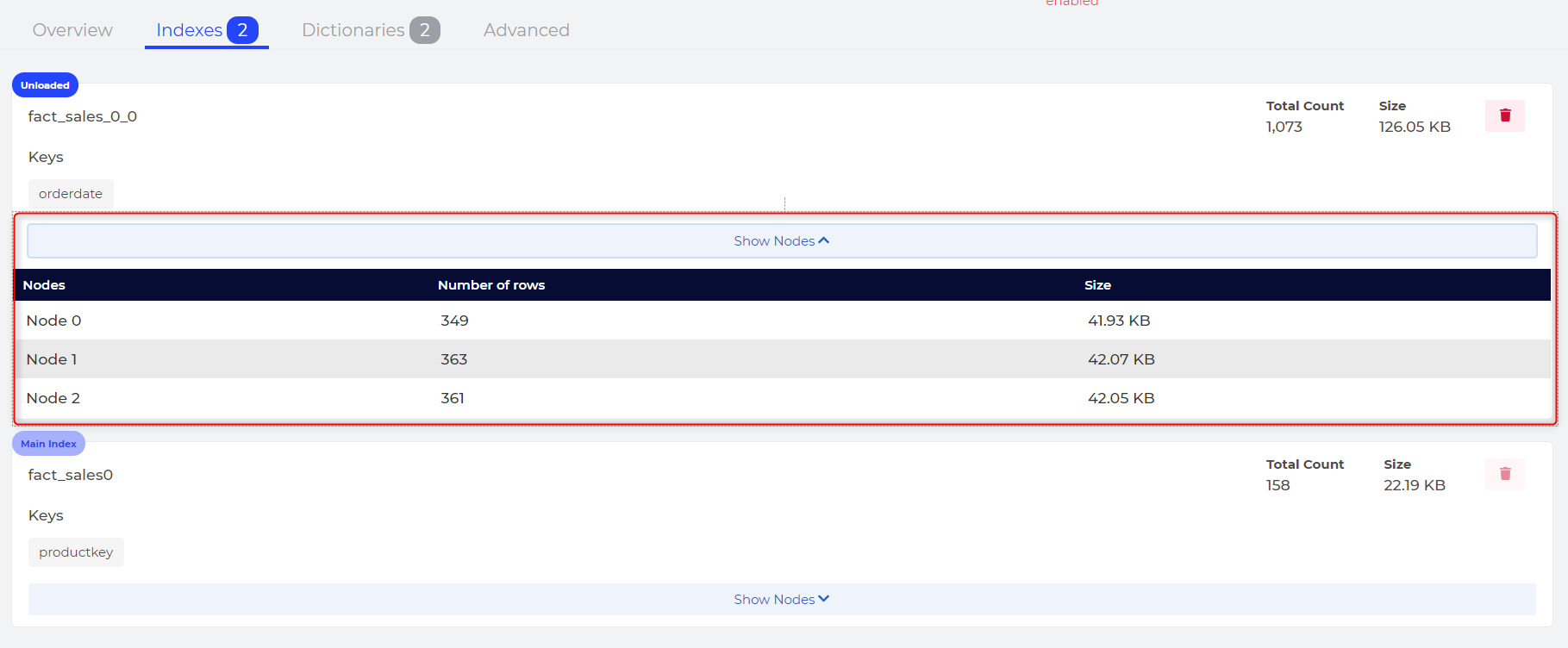

Details per node

By clicking on Show Nodes, the user can view the split of the two metrics (Total Count & Size) per node.

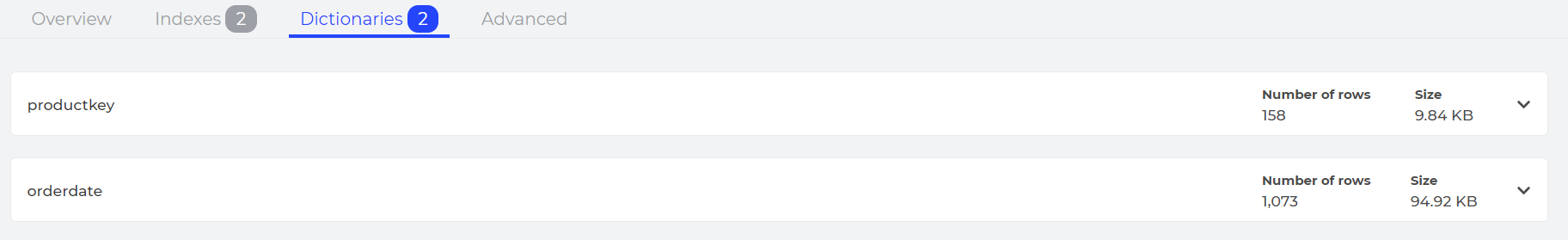

Dictionaries

List of all dictionaries used in the indexes:

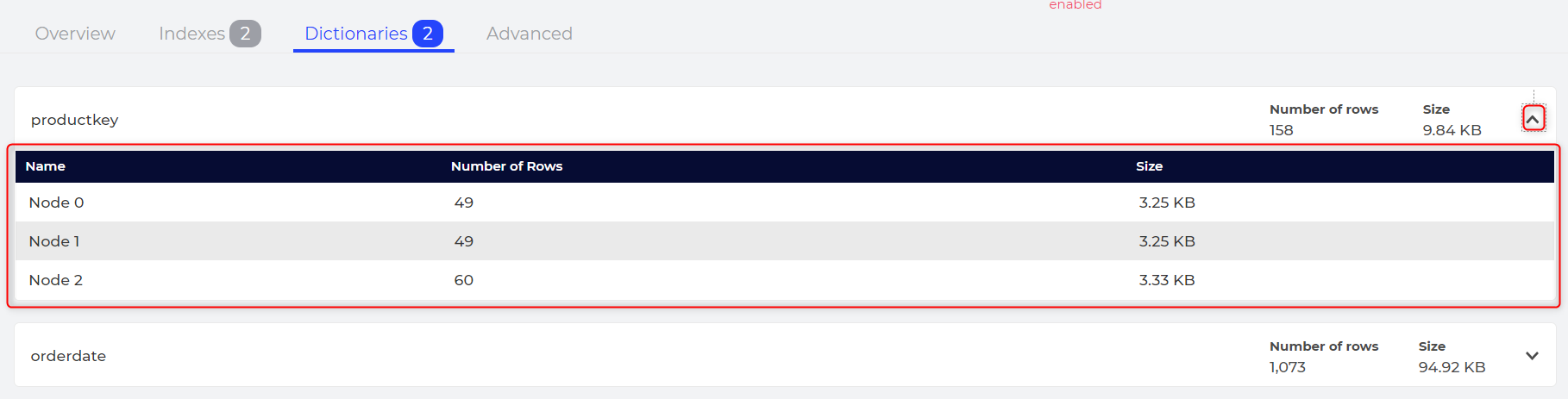

Detail per node

By clicking the left arrow, the user can view the split of two metrics (Total Count & Size) per node.

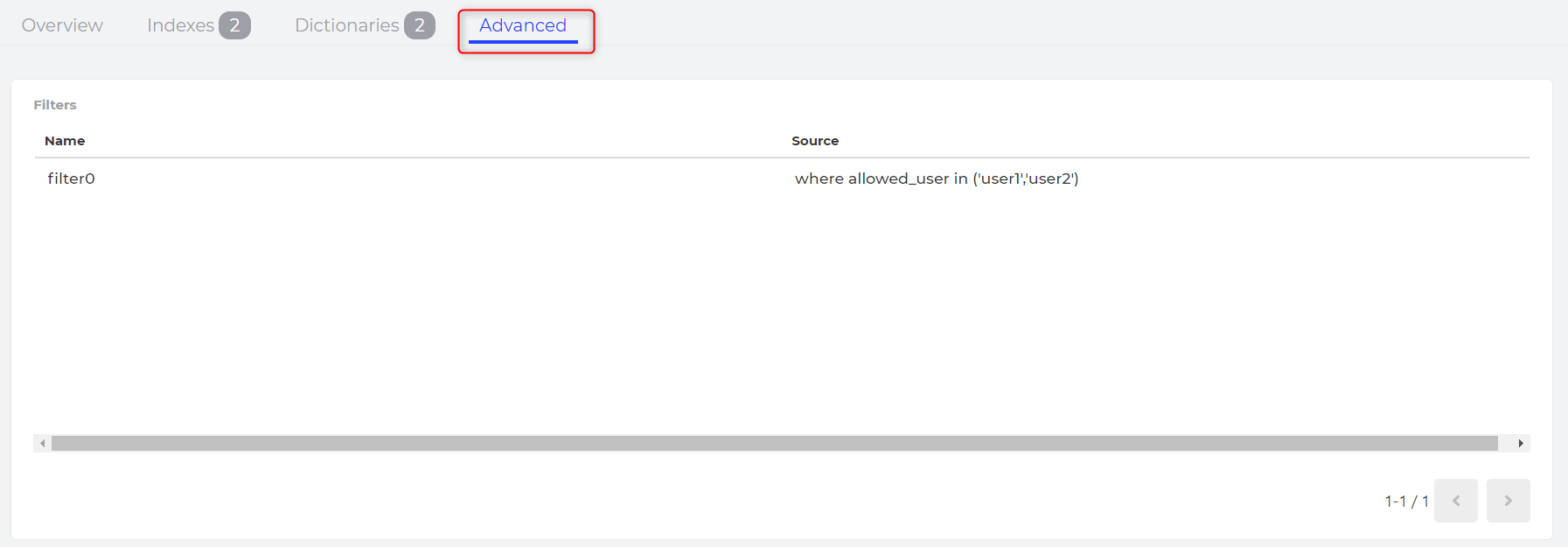

Advanced

This panel displays all filters applied to the table. For more details, please visit: ADD FILTER.

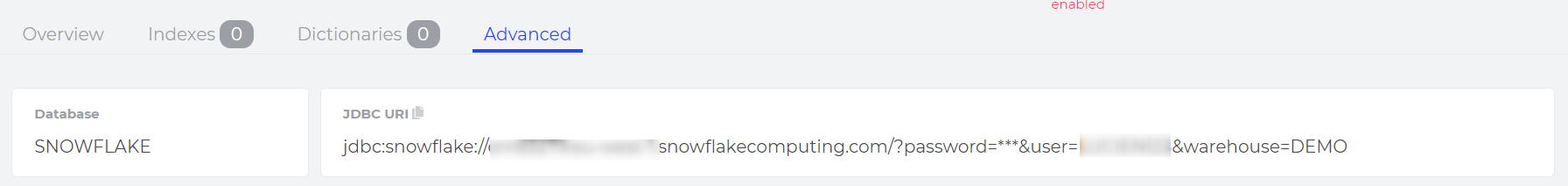

On External tables, the panel also displays the JDBC link towards the data source table

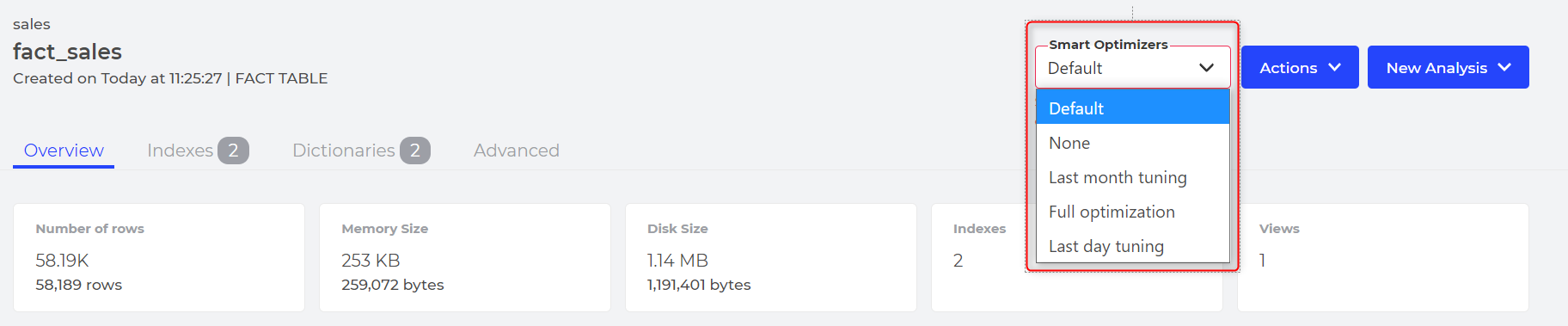

Smart Optimizers

For more details, please visit: Smart Tables

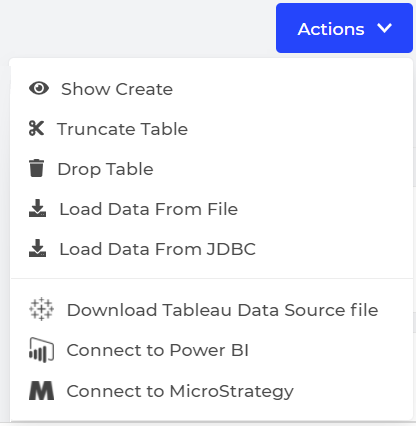

Actions

• Show Create: the system launches a SQL Command SHOW CREATE TABLE my_table and pastes the command in the clipboard.
• Truncate table: The system will empty the table by launching a SQL command TRUNCATE TABLE my_table. A confirmation is asked to the user before executing the command.
• Drop Table: The system launches a SQL command DROP TABLE my_table. A confirmation is asked to the user before executing the command.
• Load Data From File: This helps the user to load data from files through a user-friendly interface. For more details, please visit Load files using the "Load from File" Assistant.
• Load Data From JDBC: This helps the user to load data from JDBC sources through a user-friendly interface. For more details, please visit Querying a database for Data load via Assistant.

New Analysis

1. Last Month tuning/ Full Optimization / Last Day tuning: Launch analysis using the chosen parameter. For more details, please visit Optimize Table from Table overview.
2. Advanced Analyzer: A user interface that allows users to choose parameters for this optimization. For more details, please visit Indexima Advanced Analyzer.
