Indexima Diagnosis

Indexima is equipped with a function that allows you to:

  • save a snapshot of your current configuration.
  • increase offline troubleshooting capabilities.

How to manually get a diagnosis?

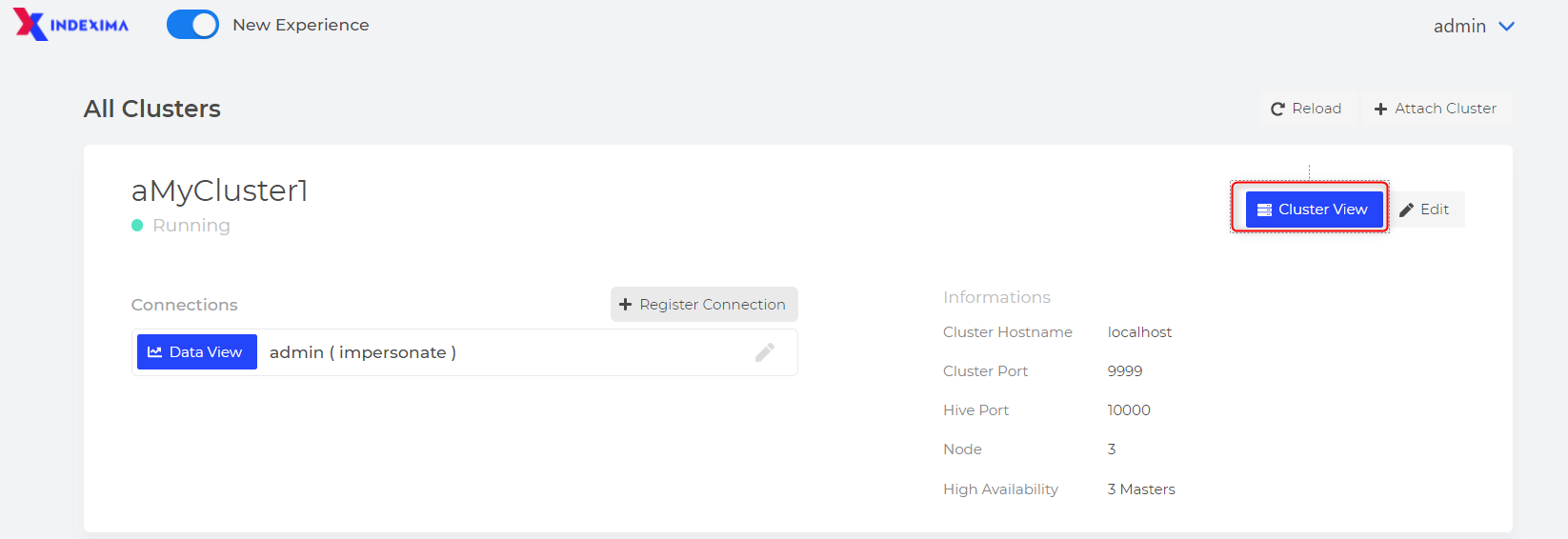

1. Go to Cluster View:

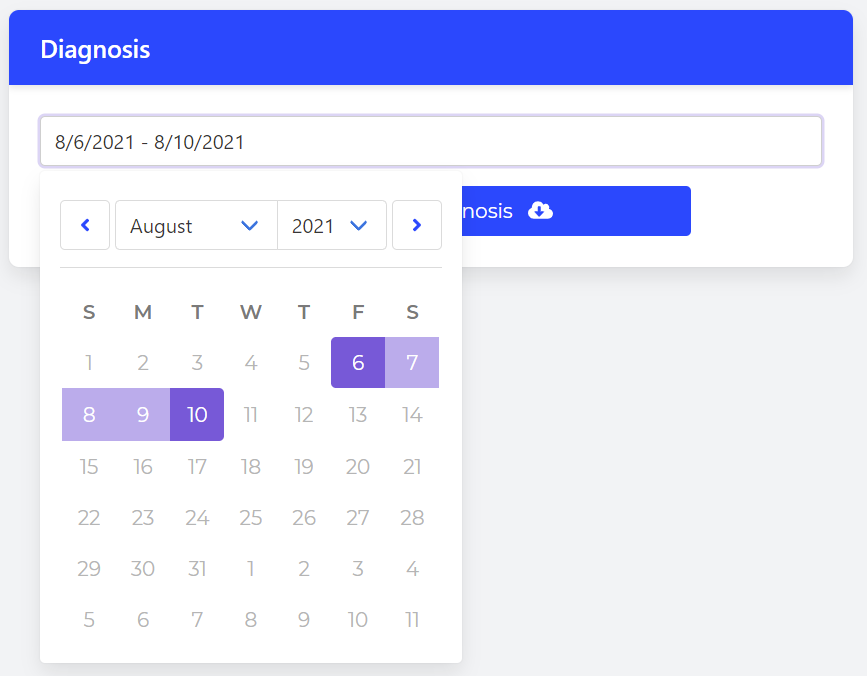

2. Select the start date and the end date then click on Download Diagnosis:

Recommendation

We recommend that you generate a diagnosis file periodically to monitor the evolution of your configuration. This can be important when you schedule important operations such as upgrade, refactoring or maintenance.

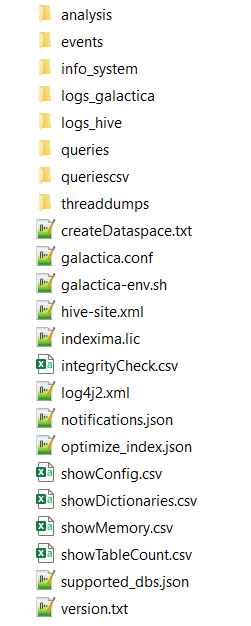

Diagnosis Content

File Name / FolderDescriptionComments
Analysis

events

info_system

logs_galactica

logs_hive

queries

queriescsv

threaddumps

createDataspace.txt

galactica.conf



galactica-env.sh

indexima.lic

integrityCheck.csvResult of a consistency check on tables stored in the warehouse. Is the result of the SQL command CHECK TABLES.
hive-site.xml

log4j2.xml

notifications.jsonConfiguration of notifications in the Indexima console.
optimize_index.json

ShowConfig.csvConfiguration at the moment of the diagnosis extraction. Is the result of the SQL command SHOW CONFIG
ShowDictionnaries.csv

ShowMemory.csv
Is the result of the SQL command Show Memory.
ShowTableCount.csvList of all tables with their number of lines. Is the result of the SQL command Show TableCount.
supported_dbs.jsonList of data source drivers configured on the cluster.

version.txtThe version of indexima that is running at the diagnosis extraction.
